sonnenBatterie 12: built-in backup without replacing your existing solar?

A useful option for the solar you already own

Adding a battery is easier to get excited about when it does not automatically mean replacing solar equipment that still works. The sonnenBatterie 12 deserves a look for that reason: its Australian product information supports both AC and DC coupling.

This is a preview of the current Australian offering, not a claim that it launched today. I could not verify an exact local launch date, a public installed price or a firm stock commitment. Those belong in an installer’s current written quote.

What interests me is the choice of installation path. If you already have solar, the first question should be what can stay. If you’re building a new system, the question becomes how the inverter, panels, battery and backup are designed together.

AC and DC are different ways to connect

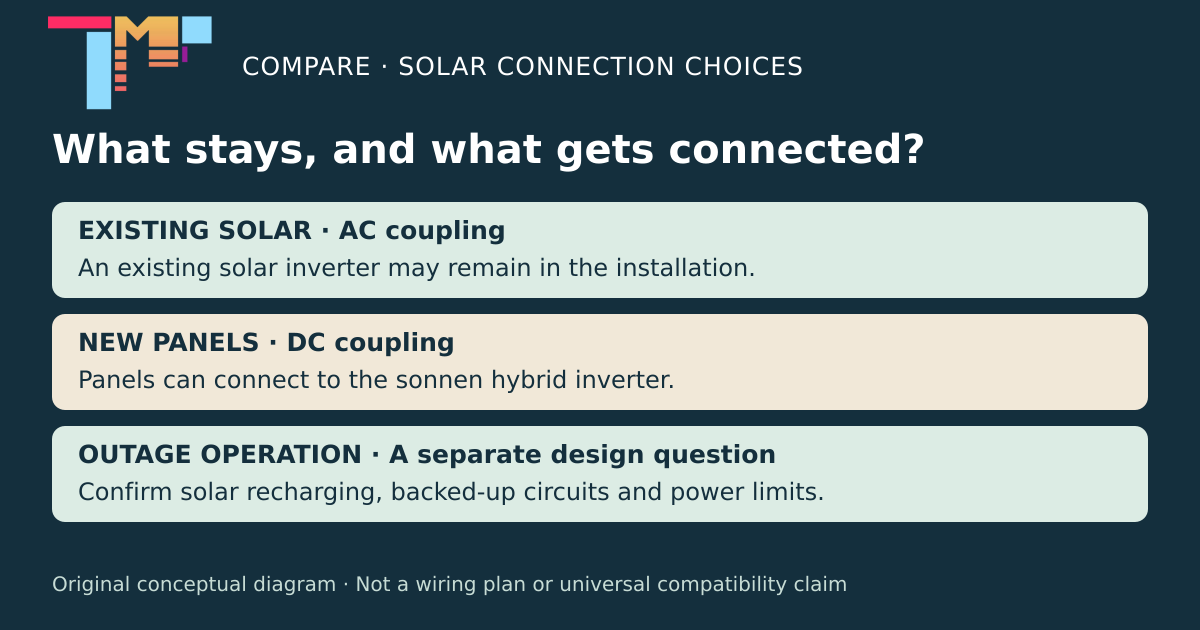

With AC coupling, the battery system can connect on the household’s AC side while an existing solar inverter remains in use. With DC coupling, panels can connect directly to the sonnen system’s hybrid inverter. The local FAQ describes both arrangements.

That flexibility does not establish compatibility with every existing installation. Ask the installer to identify the equipment being retained, any metering or switchboard work, and the operating limits of the proposed combination. A system diagram makes this much easier to understand than a quote with one large “battery package” line.

I would also ask a separate outage question: can the existing solar recharge the battery when the grid is down? Keeping an inverter for normal operation does not, by itself, prove that it will operate during an outage. Have the installer specify the actual solar path and backup behaviour.

Integrated backup still has a wiring plan

Sonnen’s Australian FAQ says Easy Backup is included as standard and supplies selected household circuits, with solar recharging and black-start capability. Black start means the system can restart without the grid under the required conditions; it is not an unlimited energy supply.

The linked operating manual gives more detail. It describes a single-phase household connection option up to a 63 A fuse rating, and separate backup circuits for three-phase homes or higher connection power. In that latter arrangement, only connected single-phase loads are supplied.

The manual also calls the backup function optional, whereas the product FAQ says included. I’d resolve that on the equipment list: confirm the supplied Easy Backup components, installation work and circuits. Neither wording is a reason to assume an unrestricted three-phase whole-home supply.

Ask for the commissioned output setting, starting-load limits and battery configuration. The manual describes overload shutdown, so simultaneous appliances matter. The fridge, internet and lights are a different brief from the oven, air conditioner and everything else joining in.

Size it for the job, then read the warranty

The Australian page lists scalable capacity from 9.4 to 28.2 kWh. Choose storage around the energy you need to shift and the reserve you want for outages, rather than treating the largest option as the default.

Sonnen advertises 10 years or 10,000 cycles, whichever comes first. Get the applicable Australian warranty document and confirm how cycles, intended use and any claim costs are handled. A long cycle allowance does not turn the warranty into a promise that every daily operating strategy is covered.

My take: the AC/DC flexibility makes this an interesting candidate for an existing-solar upgrade or a new installation. Compare complete quotes with the same backup requirements. Keeping useful equipment can be sensible; knowing exactly what the new system will do is better.
